Product:Medical Ventilator

Model:JX100A

Description:

Used in ICU, emergency department, operating room and family ward.

Main Features:

1. Multifunctional, microcomputer controlled, constant volume, pressure triggered.
2. Can effectively avoid human-computer confrontation with advanced synchronizing function. Be useful for both invasive and noninvasive.
3. Large LCD screen, detection function of pressure waveform and flow waveform.
4. Power-on self test (the tightness of tubes, battery remaining capacity, etc.)
5. Safety lock function, preventing misoperation.
6. The main components are imported high-end devices, integrated gas circuit structure, long-term stable and reliable operation.

Technical parameters:

  • Ventilation mode: CMV, A/C, SIMV, Sigh, Manual, etc.
  • Tidal Volume: at least 50-2000ml
  • Inspiratory Time: 0.3 ~ 6s
  • Respiratory Rate: 1-100bpm, 1-40bpm for SIMV
  • Oxygen Concentration: 40 ~ 100%, continuously adjustable, accurate digital display
  • Synchronous trigger sensitivity: -19 ~ 19hpa
  • Sigh: 1 per 100 times, or adjust according to the needs
  • PEEP: 0 ~ 20hpa, continuously adjustable, precise electronic control regulation
  • Build-in rechargeable Li-battery working time: more than 8 hours

Monitoring and Alarm Function:

  • Multiple parameters monitoring and display functions.
  • Multiple alarm and prompt functions.
  • Multiple security protection functions.

Service Conditions:

  • Power Supply: AC, Build-in Li-battery..
  • Gas Supply: Oxygen cylinder, Central oxygen supply.

Basic configuration:

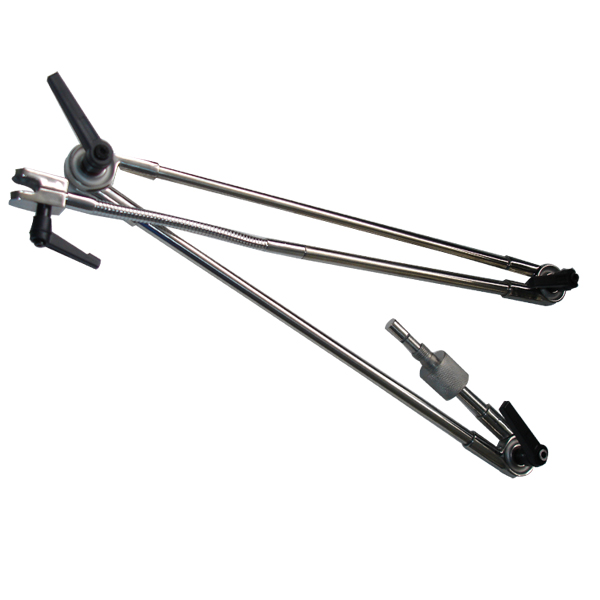

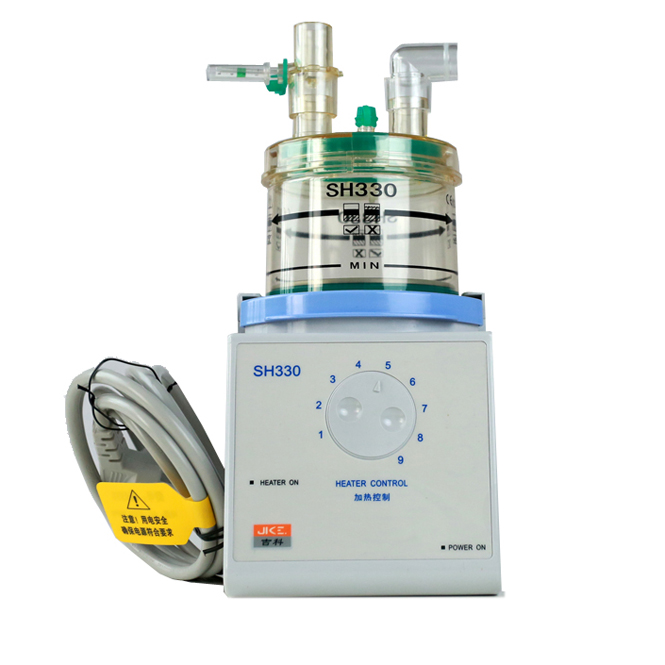

Mainframe of ventilator, trolley, support arm, humidifier, silicone breathing circuits (reusable, which can be sterilized by high temperature and high pressure ), etc.
